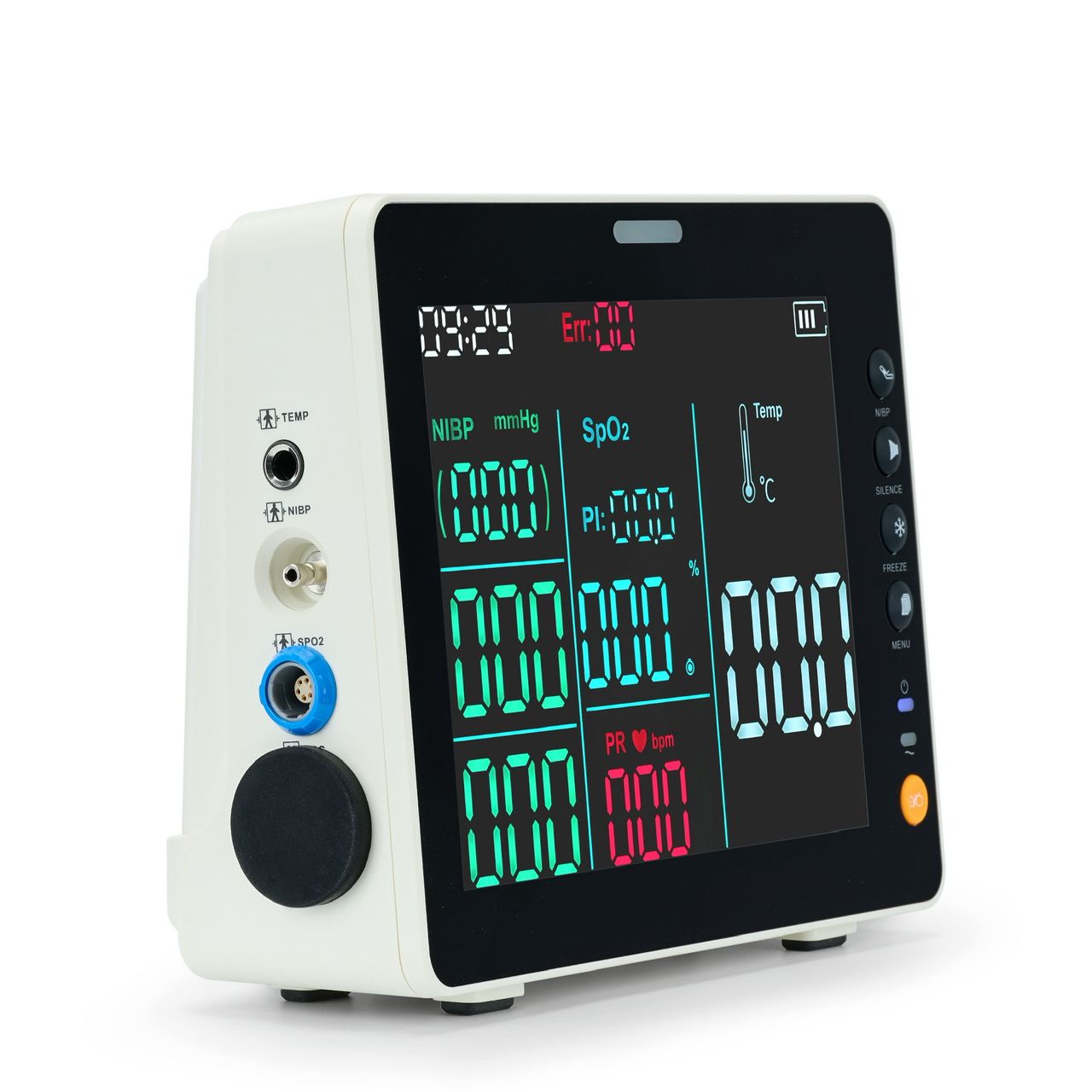

Vital sign Patient Monitor

Model : Cardiac-800A

Features:

• 8” high resolution color TFT
• Standard Parameters: SpO2 +PR, NIBP,
• Arrhythmia analysis and ST segment analysis
• 480-hour graphic and tabular trends for all parameters
• Protection against interference from defibrillator, electrosurgical knife
• Adult / Pediatric / Neonatal measurement modes
• Visual and audible alarms; Networking capability
• Build-in rechargeable battery; Optional built-in thermal printer

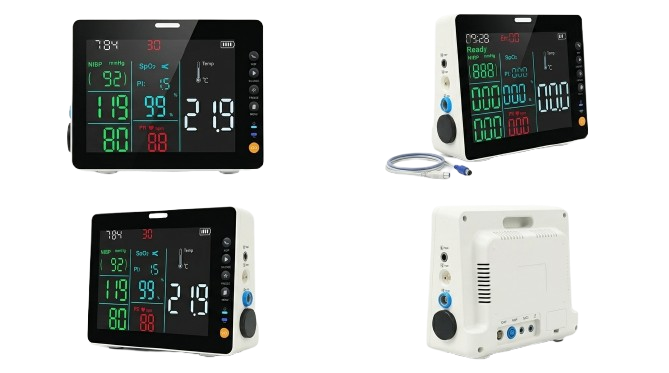

Cardiac-800A

Vital sign Patient Monitor

Technical Specification

NIBP Monitoring                                     TEMP Monitoring

Measuring method: Autometic measurement by intelligent

oscillating method

Cuff inflation time: <30 seconds (typical adult cuff)

Measuring Range              15.00C~45.00C

Measuring Accuracy        +0.20C

Display Accuracy: +1% or +2bpm

Initial cuff inflation pressure: Adult and inflant mode: 180mmHg

Neonate mode: 120mmHg

Heart rate alarm delay time: 12s

Overpressure protection limit:Adult and inflant mode: 300mmHg

Neonate mode: 120mmHg

Measuring range: Systolic Pressure:

Adult and inflant: 25mmHg~265mmHg Neonate: 25mmHg~135mmHg Diastolic Pressure:

Adult and inflant: 12mmHg~220mmHg Neonate: 12mmHg~110mmHg

Mean Arterial Pressure:

Adult and inflant: 18mmHg~245mmHg Neonate: 18mmHg~120mmHg

Sensitivity selection: Auto, x1/2, x1, x2, x4

Tolerance : 5%

Sweeping speed: 12.5mm/s, 25mm/s, 50mm/s

Measuring Accuracy     Systolic +10%

Diastolic +10%

Map +10%

Measurement Mode       Manual, Auto, STAT

    SpO2 & Pulse Rate Monitoring

SpO2 Measuring Range         135%~100%

    Other Technical Specification

power supply: 100-250Vac, 50/60Hz

power Consumption: <80 VA

Display mode: 8 inches color TFT Screen Alarming mode: Audible-visual alarm Networking por: Ethernet port

    Standard Configuration

                 SpO2 +PR, NIBP, TEMP

Transducer                            dual-wave length LED

Low Perfusion capability       0.4%~5%

PR Measuring Range            30bpm~250bpm

PR Measuring Accuracy        +2bpm

    Optional Configuration

IBP, EtCO2 and Built-in printer
