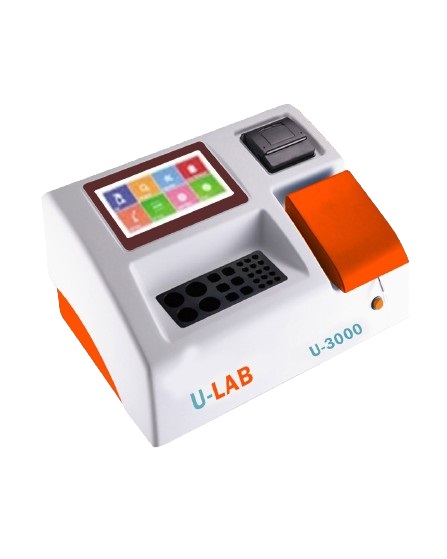

U-LAB Semi Auto Biochemistry & Coagulation Analyzer

Semi Auto Biochemistry & Coagulation Analyzer
Name :U-LAB
Model: U-3000
Origin: U.K

Feature:
7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength , 90 test item pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS232 interface, PC connecting

Specification:
Test mode: Kinetic, End point, Two point, Absorbance, Coagulation
Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 450, 578,  630 nm, 2 free position, Coagulation Optional
Wavelength precision: ±2 nm, width ≤ 10nm
Absorbance range: 0~4.500 Abs
Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs
carry over: < 1%
Repeatability CV: < 1%
Incubator: 37ºC  30ºC  25ºC and others   precision: ±0.1ºC
Sample volume: 0~3000 uL (500uL recommend)
Data Storage: ≥10000
Quality control curve: ,SD,CV%,L-J quality control curve for every test item
Flow cell: 32 uL quartz glass, 10 mm
Lamp: Philips 6V 10W Halogen Lamp with long life
Screen: 7 inch color LCD
CPU: ARM series high speed micro CPU
Printer: Internal thermal printer
Interface: RS-232
Work Environment: Temperature 0ºC ~ 40ºC, Humidity: ≤80%
Power supply: 100~240VAC,50-60Hz,100VA
Dimension: 340(L)*270(W)*160(H)
Weight: 7 kg

Usual test list:

Coagulation function: APTT, APT, PT
Liver function: ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3
Renal function: BUN  CRE  UA  URE  CO2-CP  γ-GT
Lipids: T-CHO  TG  HDL-C  LDL-C
Cardiac function: CK  CK-MB  LDH
Immune proteins: IGA  IGG  IGM  C3
Others: GLU  HGB  AMS
