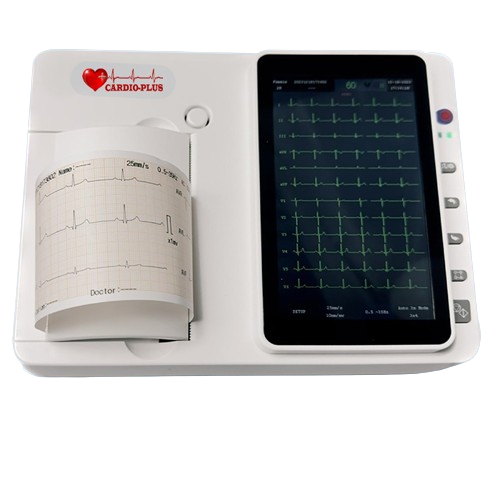

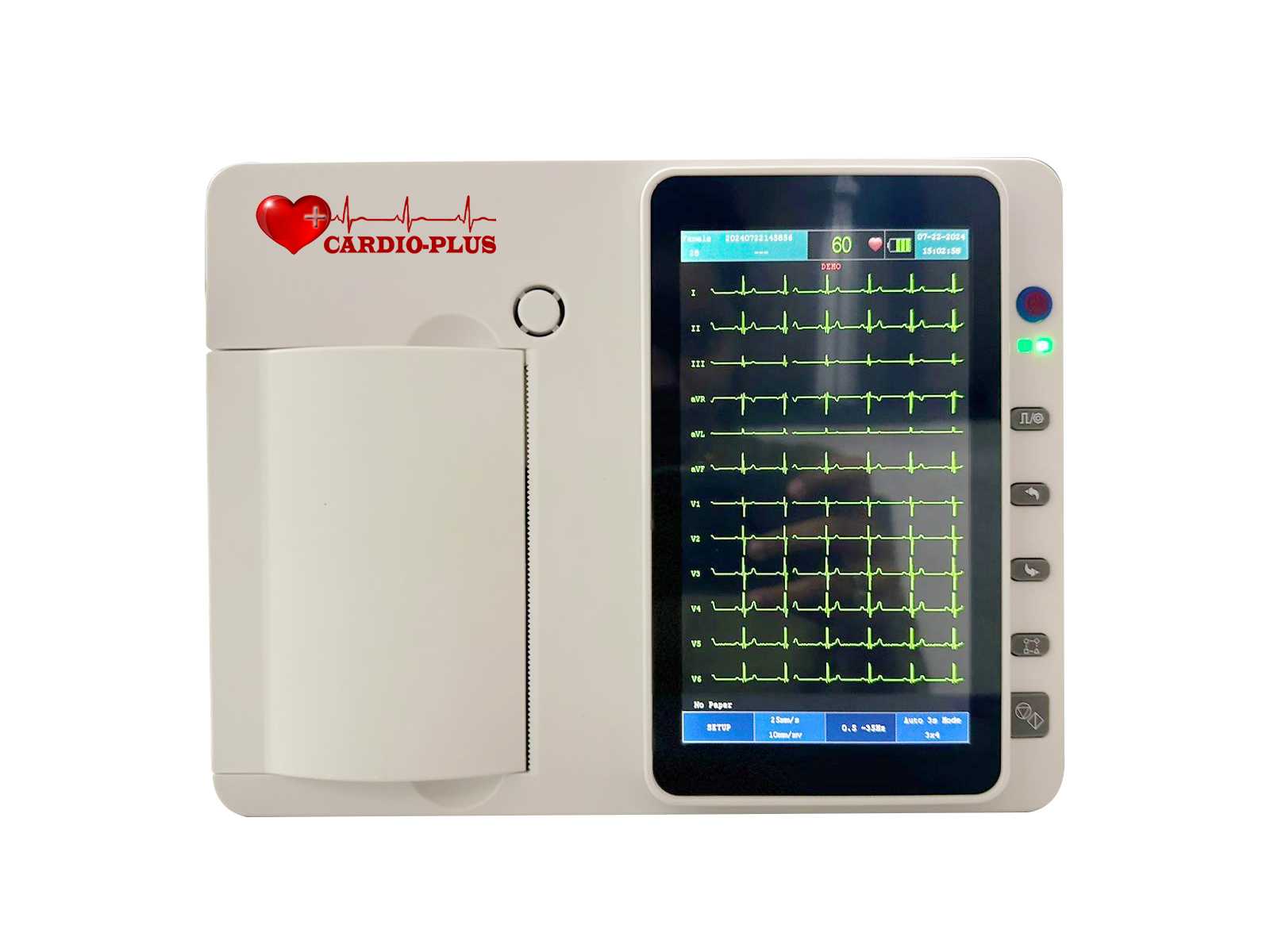

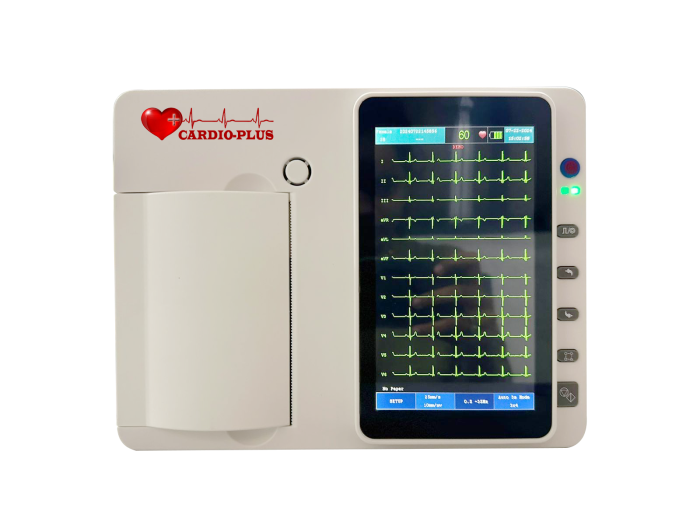

Products Features:
- 7 inch high resolution color touch screen
- 12-lead simultaneous acquisition and display
- ECG Automatic measurement and interpretation function
- Complete digital filters, resisting baseline drift, AC and EMG interference
- Compact and lightweight design

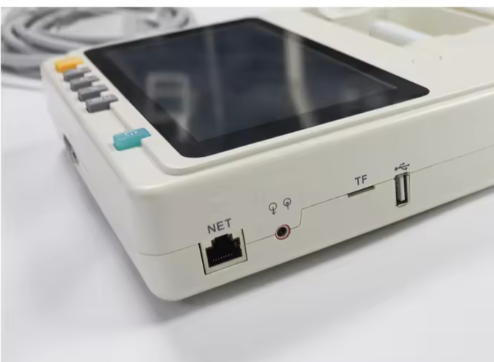

- Support USB flash disk and micro SD card to extend memory
- Software upgrade via USB/SD card
- Built-in rechargeable Li-ion battery
Technical Specifications:
| Items | Specification |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input circuit current | <0.05µA |
| Record mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
| Filter | EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
| CMRR | >100dB |
| Patient leak current | <10µA (220V-240V) |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%) |
| Anti-baseline Drift | Automatic |
| Time constant | ≥3.2s |
| Noise level | <15µVp-p |
| Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording mode | Thermal printing system |
| Paper specification | Roll 80mmx20M |
| Safety Standard | IEC I/CF |
| Sample Rate | Normal: 1000sps/channel |
| Power Supply | AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery |

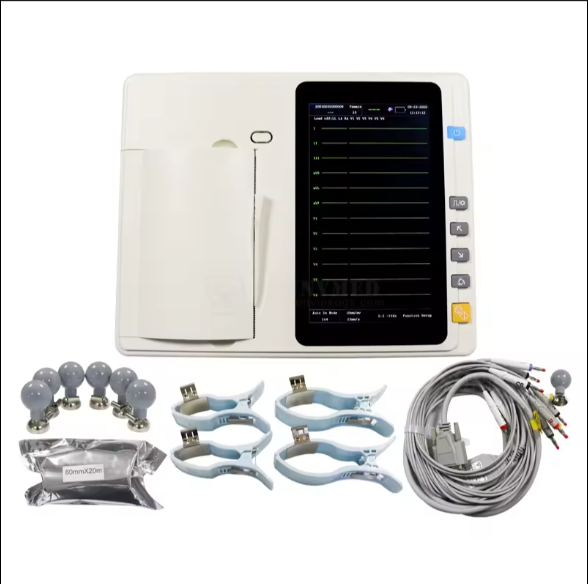

Standard Configuration:
- Main machine: 1 PC
- Patient cable: 1 PC
- Limb electrode: 1set (4pcs)
- Chest electrode: 1set( 6pcs)
- Power cable: 1 PC
- 80mm*20M recording paper: 1 PC
- Paper axis: 1 PC
- Power cord: 1 PC
