Convenient Operation Through Touch Screen
7” color touch screen, friendly user interface, covenient operation.
Multifunctional Incubator
Multifunctional incubator specially designed for chemistry and coagulation tests, different holes can be used to put sampe tubes, chemistry cuvettes, coagulation cuvettes, accurate temperature control, more efficient sample incubation.
6 Intefaces, More Suitable
5 USB Interfaces +Ethernet Port.
Mouse, keyboard and printer can be connected freely, easy transmission of LIS data.
Powerful Inner Core, Huge Storage
Storage of 200000 results, results are stored without pressure.
Intelligent & Humanized Software
More convenient to edit test items freely, clear presentation of real-time curve, calibration, quality control and sample results.

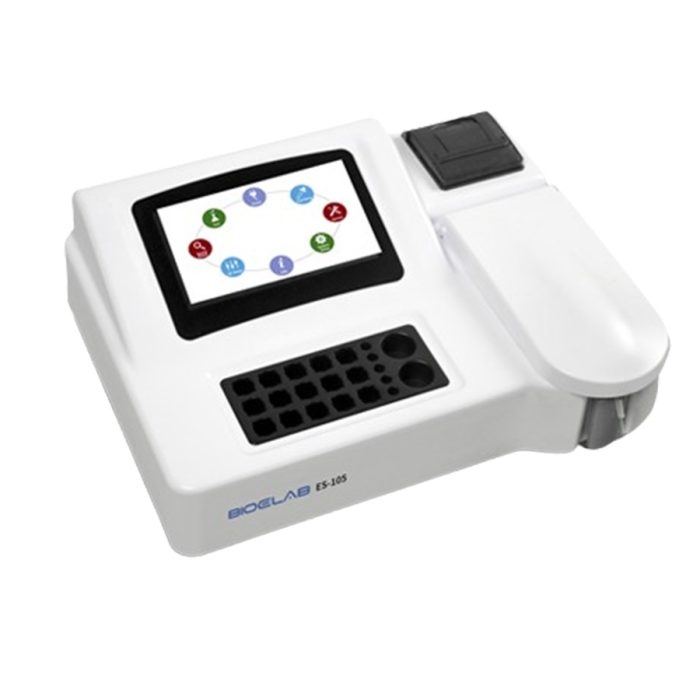

ES-105 Technical specifications
-
Test method1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation(optional)
-
Optics7 standard filters (340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm). 2 more for optional
-
Lamp houseLong-life tungsten halogen lamp(6V/10W), auto-sleep function
-
Display7.0″TFT LCD with touch screen, 800*480 pixels
-
PrinterBuild-in thermal printer, 57mm printer paper
-
Flow cell capacity & optical path32ul, 10mm
-
Resolution0.0001 Abs
-
Photometric range0.0000-4.0000 Abs
-
CPUARM Cortex-A8, 800MHz
-
Memory(Storage)4GB; Over 300 programs, 200000 results can be stored
-
Operational environmentTemperature 10℃~30℃; Humidity 30%~80%
-
Power requirementWide power supply AC 100-240V, 50/60 Hz
